Carton Packaging Machine

Paper carton packaging machine has 2 kinds of sealing: one is carton wrapper with hot glue; the other is carton packing with tape sealing. It is important process for...
Availability:
Quantity:

Paper carton packaging machine has 2 kinds of sealing: one is carton wrapper with hot glue; the other is carton packing with tape sealing. It is important process for beverage package process.

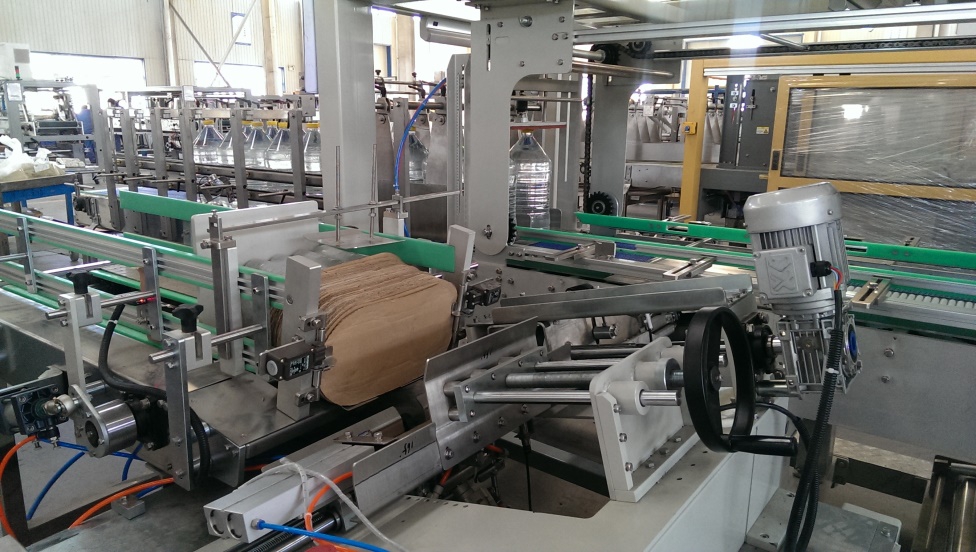

Paper carton wrapper:

Adopts the falling packaging method, the occupied space is small, the equipment investment cost is reduced, the international advanced design concept is adopted, the structure is more advanced and reasonable, the movement is lighter and smoother, and the power consumption is also smaller. Use touch screen operation, parameter adjustment on the man-machine interface, easy to adjust, can display production speed, fault cause and location, high degree of automation.

Use inverter to achieve automatic control, precise position control and step-less speed regulation, and has fast communication capability and powerful diagnostic functions to ensure system reliability. The operation is convenient, the structure is compact and reasonable, and the degree of automation is high. Use famous brand cylinders, reliable quality, performance, can meet high strength, long hours of work. Most electrical components are well-known brands in Europe, with stable and efficient performance.



Model

WS-20Z

WS-30Z

WS-40Z

Bottle arrangement

2*1, 2*2, 3*2, 3*3, 4*3, 4*4, 4*5, 4*6, 5*5, 5*6, 6*6, etc.,

Suitable bottle volume

200ml-2000ml/3L-6L

Sealing media

Hot glue

Capacity

20 ctns/min

30 ctns/min

40 ctns/min





https://youtu.be/xV68b4FjjR8



Carton packing machine with tape seal:

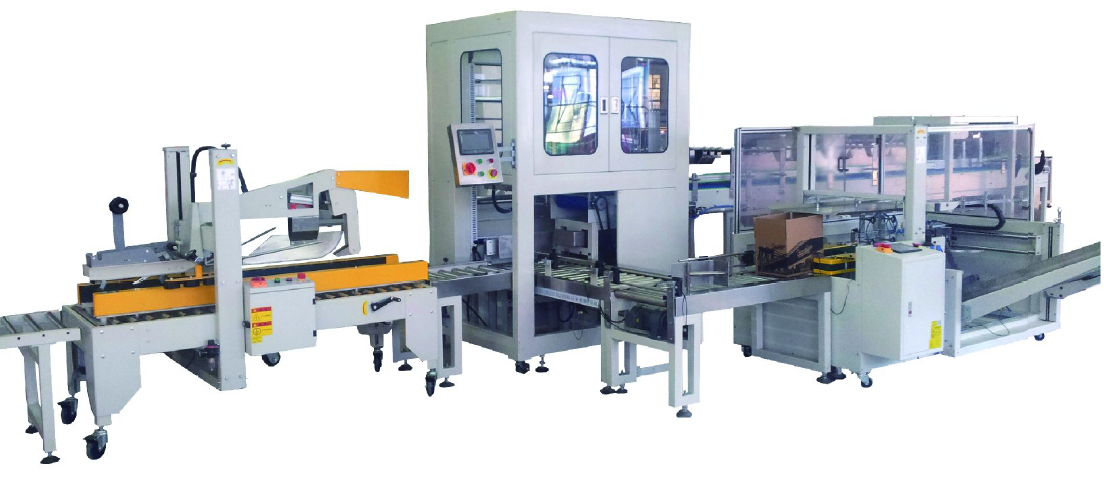

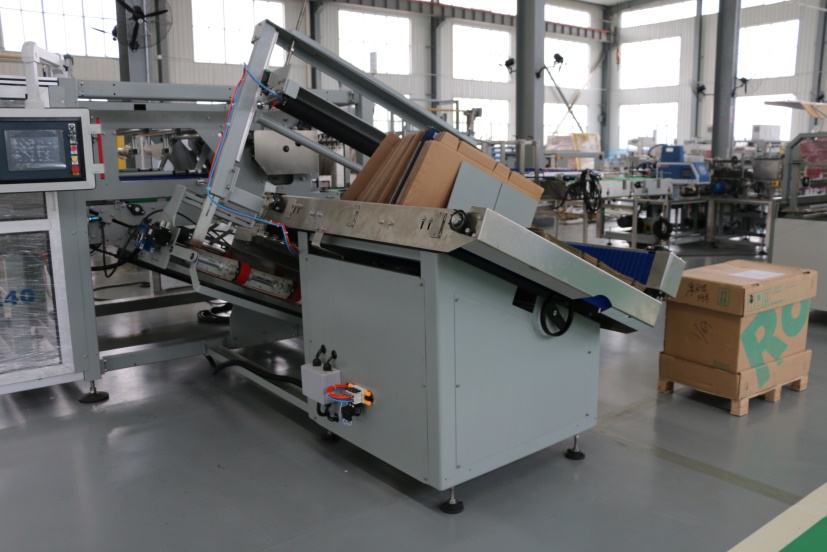

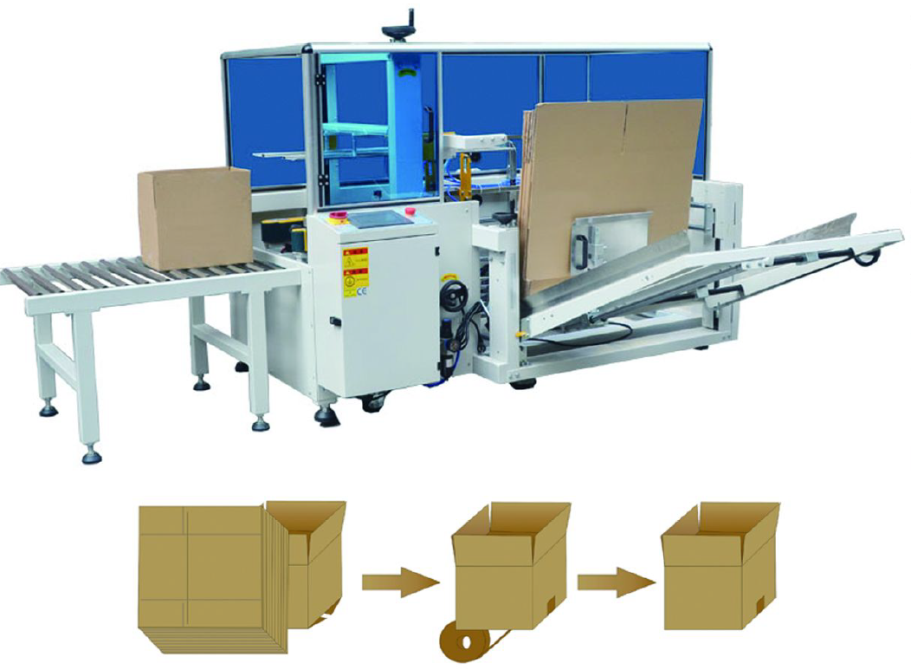

The system totally has 3 machines with connected roller conveyor. They are carton erector, carton pick & place machine, carton sealer and carton roller conveyor. The paper carton is loaded on carton erector, and carton bottom was sealed with tape. Then the formed carton is sending into carton pick & place machine. Bottles are picked up from the conveyor and placed into carton by vacuum holding unit. The full carton is sending into carton sealer to be sealed by tape.


Model

WS-10P

WS-20P

WS-30P

WS-40P

Bottle arrangement

2*1, 2*2, 3*2, 3*3, 4*3, 4*4, 4*5, 4*6, 5*5, 5*6, 6*6, etc.,

Suitable bottle volume

200ml-2000ml/3L-6L

Sealing media

Tape

Capacity

6 ctns/min

12 ctns/min

18 ctns/min

24 ctns/min
