PRODUCT DETAIL

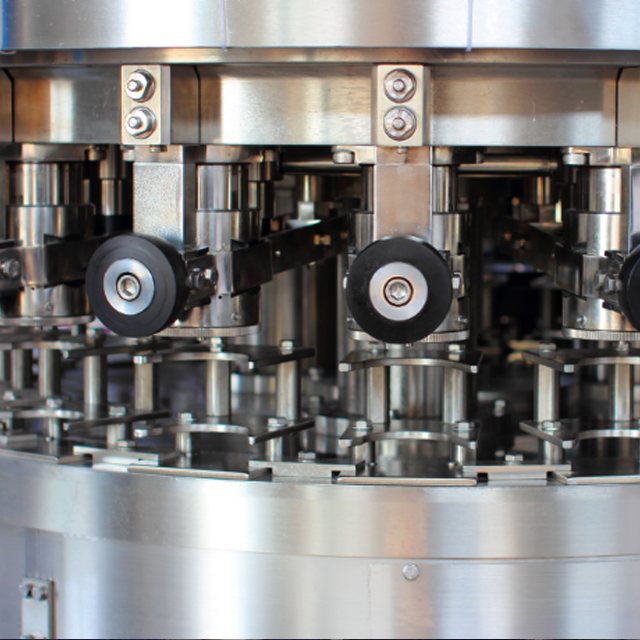

Can Filling Machine

The can filling machine has filling unit and seaming unit. The machine is widely used to fill can product, for example, carbonated drinks, juice, tea, beer, etc.,
Availability:
Quantity:

The can filling machine has filling unit and seaming unit. The machine is widely used to fill can product, for example, carbonated drinks, juice, tea, beer, etc., The filling capacity is 2000CPH to 36000BPH, based on 330ml can.



Feature:

  • The machine frame is a welded structure of high quality carbon steel with the surface anti-rust treated and coated. The machine frame is wrapped with stainless steel sheet (AISI304).

  • Can Filler & Seamer incorporate mechanical filling valves, with principle of isobar filling; filling part is driven by seaming part to keep sync. Oxygen levels are reduced through using CO2 to exhaust the air from the cans prior to filling, ensure the low oxygen pickup during the whole filling process.

  • Can filler mainly used for beer or carbonated beverage filling. It consists of filling bowl, filling valve and rotary table etc. All parts that contact with product are made of stainless steel to ensure sanitary environment

  • The machine adopts frequency conversion synchronization control, The transmission has auto grease lubrication devices (LINCOIN), which supply lubrication oil at given time according to different needs.

  • Since all filling components can be lowered according to the height of easy-open can, so it does not need any can-support parts. Cans are on the same level when pass through the filler, without any lift motion during filling process.



Main configuration:

Element name

Brand

Frequency exchanger

MITSUBISH

Main Motor

SEW/ABB

PLC

MITSUBISH

Pneumatic components

SMC/AUTONICS

Touch screen

MITSUBISH

Contactor

SCHNEIDER

Thermal relay

SCHNEIDER

Air switch

SCHNEIDER

Proximity switch

TURCK

Photoelectric switch

BANNER

Filling valve

SS 304

Rinsing and working platform

SS 304



https://youtu.be/EzovNeQxGA0



Product list:

Model

CGF12-4

CGF16-4

CGF20-4

CGF30-6

CGF40-10

CGF60-18

Filling head (pcs)

12

16

24

32

40

60

Capping head (pcs)

4

4

4

6

10

18

Can volume (ml)

200-750

200-750

200-750

200-750

200-750

200-750

Power (KW)

1.5

2.2

3.0

4.0

7.5

11.0

Capacity (CPH, 330ml)

2000

5000

8000

15000

24000

36000
